Crane barge and sectional barge FAQ

Sectional Barges for Sale | WorkMarine Sectional Barges

The Versatile Solution for Your Heavy-Duty Marine Projects

At WorkMarine, we provide modular sectional barges designed for strength, flexibility, and reliability. Our barges support a wide range of marine construction needs—including cranes, dredging, drilling, pile driving, and equipment transportation. Whether you’re working on bridge construction, shoreline projects, or any application requiring a stable floating platform, A Work Marine Sectional Barge will deliver dependable performance making it the best in its class. Get yours today!

Why Choose Work Marine Sectional Barges?

  • Modular Design: Easily configure platforms to suit any project size or scope. Our sectional barges connect quickly using a secure hairpin system for fast setup and breakdown.
  • Built Tough: Constructed from Grade A-36 steel with marine-grade coatings for exterior durability.
  • High Capacity: Handle heavy loads with confidence—up to 58 Ton load capacity per section.
  • OSHA-Compliant: Standard 18″ deck hatches allow for safe internal inspections. Safety ladders and railing are available for enhanced worker protection.

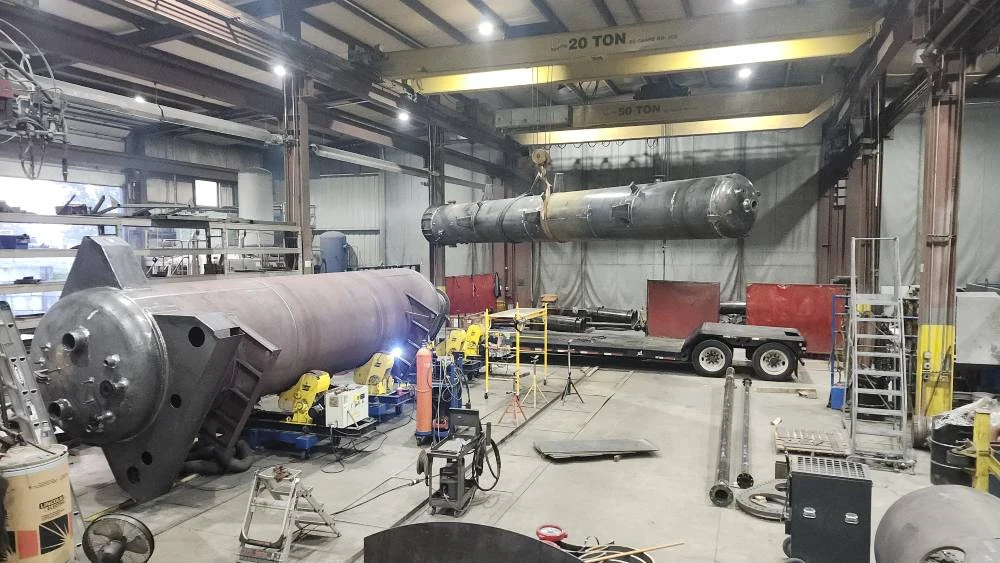

about Work Marine barge manufacturers

All Work Marine Sectional Barges:

  • All material domestic ASTM A36
  • Shell material ¼”
  • Recessed lifting lugs (4)
  • Fabricated in an ASME Code Vessel Facility, that is also accredited to ISO 9001-2015, AISC, and AWS Fabricator
  • All welders qualified by AWS D1.1 or ASME BPVC Section IX
  • Exterior surface prepared to SSPC -SP 6, with Epoxy primer coat, Urethane topcoat, with top deck receiving third coat/grit pain. Total DFT 6.0 mils
  • Receive a 4-hour, pneumatic pressure test (leak testing)
  • All Sectional Barges of same class can be pinned together in transverse or longitudinal direction to create an unlimited deck area array
  • Custom configuration/design available
  • Pin configuration can be modified to fit existing Customer barges
  • All Work Marine Section Barges have serial number for traceability. On request, Customer may receive data book for their barge (MTR, Welder Quals, NDE inspection reports, Paint documents, Air testing reports)
  • All Work Marine Barges carry Work Marine’s Industry leading 7-year manufacture warranty (see warranty sheet for additional information)
  • All Work Marine Barges carry a Professional Engineer Seal (PE)

Sectional Barge Classes

  • Standard Duty (SBSD)
    • 10’x5’x20′-30′-40′
  • Extra Capacity (SBEC)
    • 10’x7’x20′-30′-40′
  • Stack Transport (SBST)
    • 8’x4’x16′-24′-32′-40′
  • Rental prices available on request
sectional barges for sale

Features & Accessories

  • External mount spud pockets (20′, 30′, or 40′ spuds)
  • Double drum winches
  • Catwalks, fenders, cleats, pushers
  • Safety ladders and railing
  • Custom configurations and engineering support

Applications

  • Cranes: Float everything from carry deck cranes to large crawler cranes safely.
  • Dredging: Ideal platforms for mechanical and hydraulic dredging operations.
  • Drilling: Access sites directly over water with robust stability.
  • Pile Driving: Perfect for H pile and sheet pile installations.
  • Transport: Move heavy cargo such as rip rap, machinery, or wind turbine parts across waterways.

Specifications - Pricing

Model
Width (ft)
Depth (ft)
Length (ft)
Weight (lbs) approx.
Draft (in)
Capacity (ton) 12-inch free board
Pin Diameter (in)
Number Pins included
Base Price (as of 2025-10-1)
Spudwell all (4) corners
Pins (ea)
Ladder
Rake Option
SBSD-20
10
5
20
15,000
14.50
17.50
1-1/8
20
$30,873
$2,500
$50
$500
$3,250
SBSD-30
10
5
30
21,500
13.75
26.75
1-1/8
30
$42,669
$2,500
$50
$500
$3,250
SBSD-40
10
5
40
27,750
13.50
36.00
1-1/8
40
$54,427
$2,500
$50
$500
$3,250
SBEC-20
10
7
20
18,500
17.50
28.25
1-1/4
20
$35,689
$2,750
$65
$600
$3,750
SBEC-30
10
7
30
26,250
16.75
43.25
1-1/4
30
$49,541
$2,750
$65
$600
$3,750
SBEC-40
10
7
40
34,000
16.25
58.00
1-1/4
40
$63,393
$2,750
$65
$600
$3,750
SBST-16
8
4
16
9,250
13.75
7.25
1-1/8
16
$21,230
$2,250
$45
$400
$2,750
SBST-24
8
4
24
13,000
13.00
11.50
1-1/8
24
$28,525
$2,250
$45
$400
$2,750
SBST-32
8
4
32
16,750
12.75
15.50
1-1/8
32
$35,859
$2,250
$45
$400
$2,750
SBST-40
8
4
40
20,500
12.50
19.75
1-1/8
40
$43,154
$2,250
$45
$400
$2,750

Fast Delivery & Nationwide Service

With multiple locations across the country, WorkMarine can deliver or mobilize your sectional barge system quickly—wherever your project takes you.

Request a Quote or Learn More

Ready to acquire your own Mobile Marine Barge? Contact our team to discuss your needs, specifications, and get a tailored quote.
